Natural gas remains a cornerstone fuel source across upstream, midstream, refining and industrial processing facilities. However, natural gas actuator systems operating in environments containing H₂S demand careful engineering to ensure safety, compliance and long-term reliability.
For facilities operating pneumatic valve automation in natural gas service, material compatibility and actuator selection directly impact performance, lifecycle cost and operational uptime.
Understanding the impact of H₂S in natural gas systems
Natural gas primarily consists of methane but may also contain ethane, propane, nitrogen, CO2, water vapor and H₂S. When H₂S exceeds defined thresholds, the gas is classified as sour. When H₂S is below these thresholds, the gas is classified as sweet. Even at lower concentrations, H₂S can attack elastomers and high-carbon steel components, increasing the risk of premature equipment failure.
Materials such as nitrile buna rubber (NBR), nylon and certain spring steels are particularly vulnerable in H₂S environments. Without proper safeguards, degradation of seals and internal components can compromise actuator torque output, valve sealing performance and overall system reliability.
Proactive material selection is essential when specifying H₂S service valves and natural gas actuators.
Specifying pneumatic actuators for sour gas service

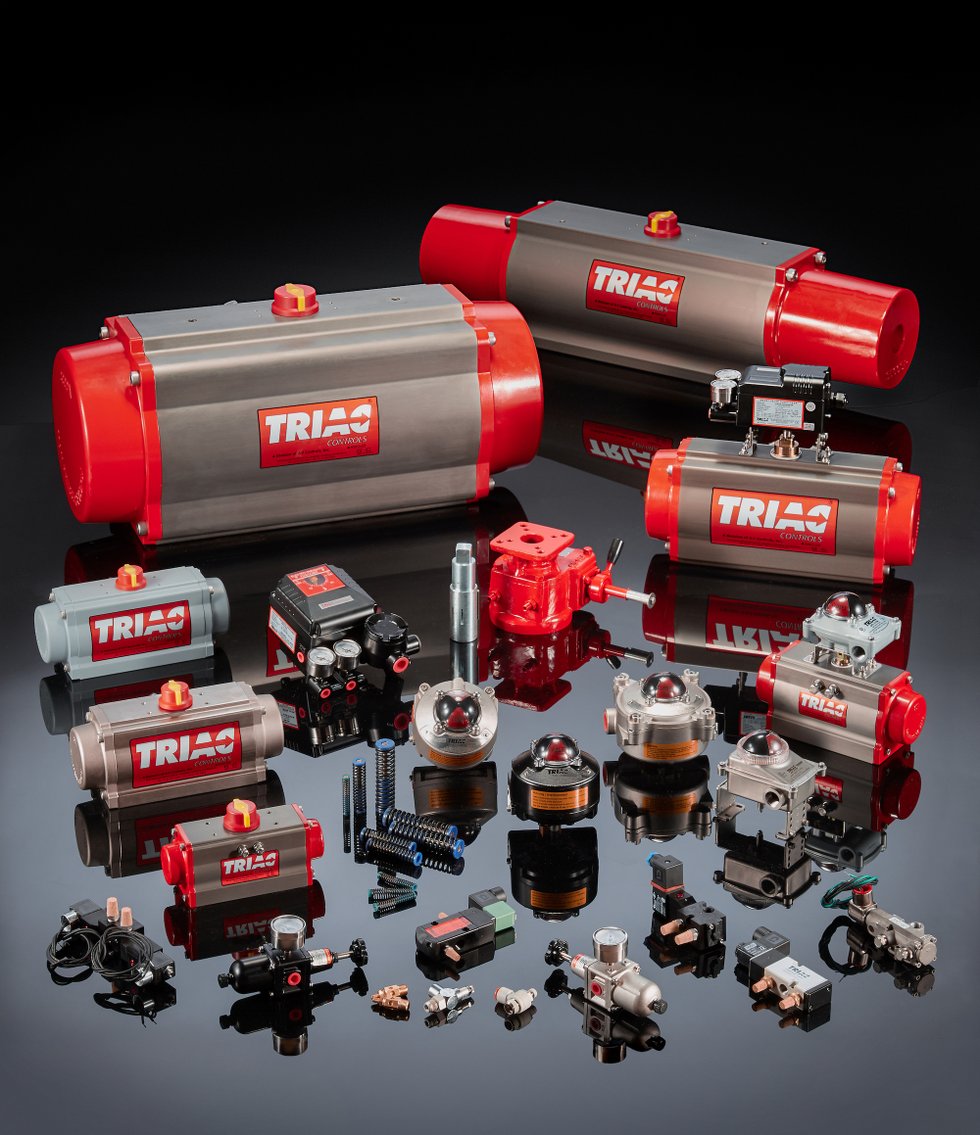

3R Series
A-T Controls offers pneumatic actuators engineered to operate in systems containing natural gas with H₂S. Because of the corrosivity of H₂S and its attack on soft materials like NBR/Nylon and high-carbon materials such as springs, A-T Controls’ spring return actuators in natural gas systems with H₂S present in any concentration must contain Viton® seals. Springs must be isolated from H₂S to ensure chemical attack on incompatible materials is avoided.
Beyond elastomer compatibility, actuator construction must support the pressure, cycling frequency and environmental conditions typical of natural gas valve automation.
For standardized quarter-turn applications, the 3R Series rack and pinion pneumatic actuators deliver compact, corrosion-resistant performance with dual travel stops, ISO 5211 mounting dimensions and NAMUR accessory mounting.
In more corrosive or washdown environments, stainless steel rack and pinion pneumatic actuators featuring 316 SST bodies, pinions and pistons provide enhanced durability while maintaining consistent torque output for natural gas service.
For multi-port valves and other 180-degree applications, 180-degree pneumatic rack and pinion actuators offer torque ratings up to 7,700 inch-pounds with hard-anodized aluminum housings for demanding control applications.
For severe-duty or high-torque sour gas valve automation, THD Series Heavy Duty Scotch Yoke Actuators deliver torque capabilities up to 1,600,000 inch-pounds in symmetric and canted yoke configurations.

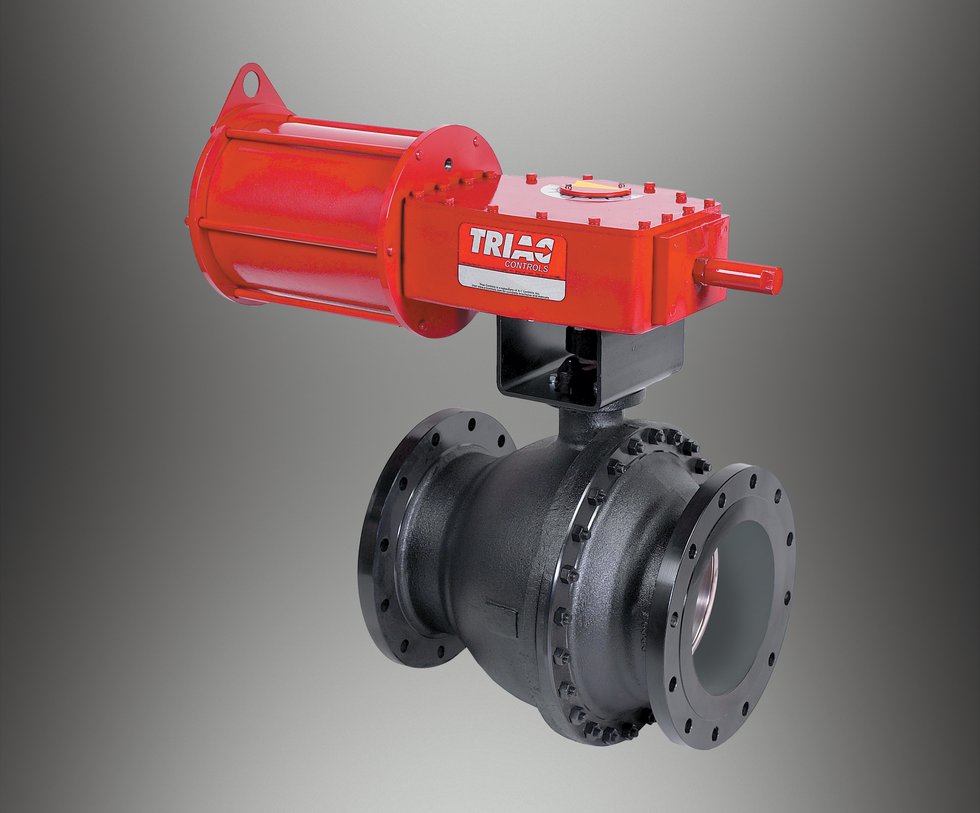

THD Series
Selecting the appropriate natural gas actuator platform ensures consistent valve performance, reliable fail-safe operation and extended service life in both sweet and sour gas applications.
Valve materials and torque considerations in natural gas applications
Material selection for H₂S service valves is equally critical. Floating ball valves used in natural gas systems must resist corrosive exposure while maintaining reliable shutoff performance.
In applications involving unfiltered natural gas, debris in the media stream can increase operating resistance. Actuators should be sized at 1.5 times the valves rated torque to compensate for particulate loading and ensure dependable operation. This sizing consideration is essential to maintaining long-term reliability in pneumatic valve automation systems.
Standard body materials such as 316 stainless steel or carbon steel, combined with seat materials including Polytetrafluoroethylene (PFTE), Reinforced Tetrafluoroethylene (RFTE), Modified PTFE (TFM™-1600), and 50/50 stainless steel full envelope, provide flexibility in meeting process and compliance requirements. Auxiliary stem seals utilizing PTFE, RTFE, TFM™-1600, 50/50 Stabilized or Super-Teflon® PTFE, Viton® or graphite further enhance sealing integrity in corrosive environments.
Meeting NACE requirements for sour gas valve automation
Compliance with National Association of Corrosion Engineers (NACE) MR0175 and MR0103 remains a key requirement for components operating in H2S environments. These standards define hardness limits, bolting requirements and material criteria designed to mitigate sulfide stress cracking and corrosion-related failures.
Natural gas valve automation packages configured to meet NACE requirements provide operators with added assurance in sour gas service while reducing the risk of unplanned downtime.
A system-level strategy for natural gas valve automation
Natural gas actuator and valve selections should be approached as a fully engineered solution rather than a standalone component purchase. Gas composition, operating pressure, temperature, debris potential and compliance standards must be evaluated together to ensure safe, durable performance.
By pairing compatible materials with purpose-built pneumatic actuator platforms such as the 3R Series, stainless steel rack and pinion, 180-degree rack and pinion and THD Series Heavy Duty Actuators, facilities can confidently implement sour gas valve automation solutions that support uptime, regulatory compliance and lifecycle cost control.
For operators focused on reliability, safety and long-term performance, engineered natural gas valve automation is not simply best practice — it is a strategic investment in operational continuity.
For more information, visit vytlcontrols.com.
